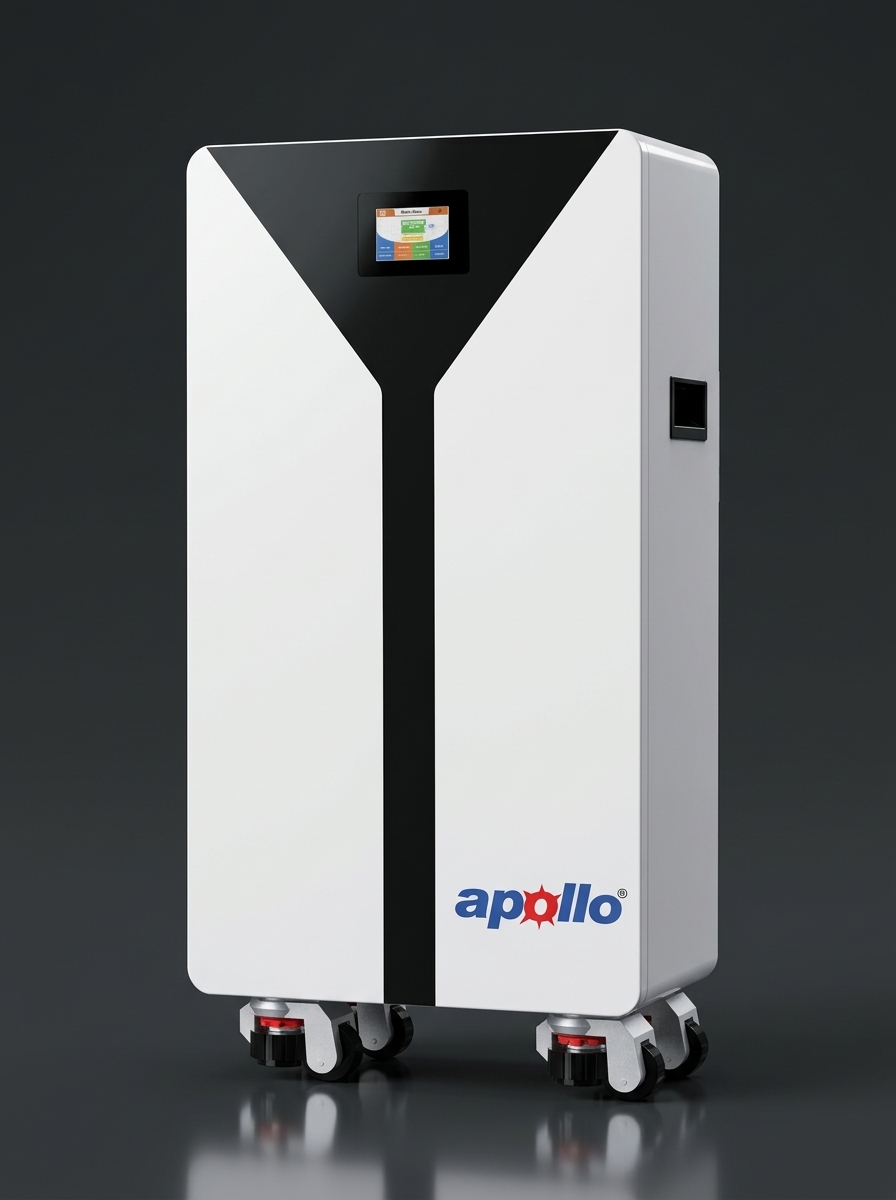

Apollo Neptune LA-C16.0: 16.07kWh Heavy-Duty LiFePO4 Floor ESS
Engineered for large luxury villas, commercial offices, hospitals, and high-demand solar installations in Pakistan. The Neptune LA-C16.0 packs a massive 16,076Wh of usable energy into an industrial wheeled floor cabinet with dual 200A DC circuit breakers and heavy-gauge copper busbars, running multiple Inverter ACs through entire power outages.
314Ah Prismatic Architecture & Dual-Bus BMS Synchronization
Watch the engineering showcase exploring the giant 16.07kWh high-capacity cell assembly, dual 200A DC breakers, heavy copper terminal busbars, and industrial thermal heat pipes built for Pakistan's most demanding electrical environments.
Four Pillars of 16.07kWh Energy Storage
How Apollo Neptune LA-C16.0 powers large homes, commercial plazas, and mission-critical solar installations with uncompromising power reserves and industrial safety.

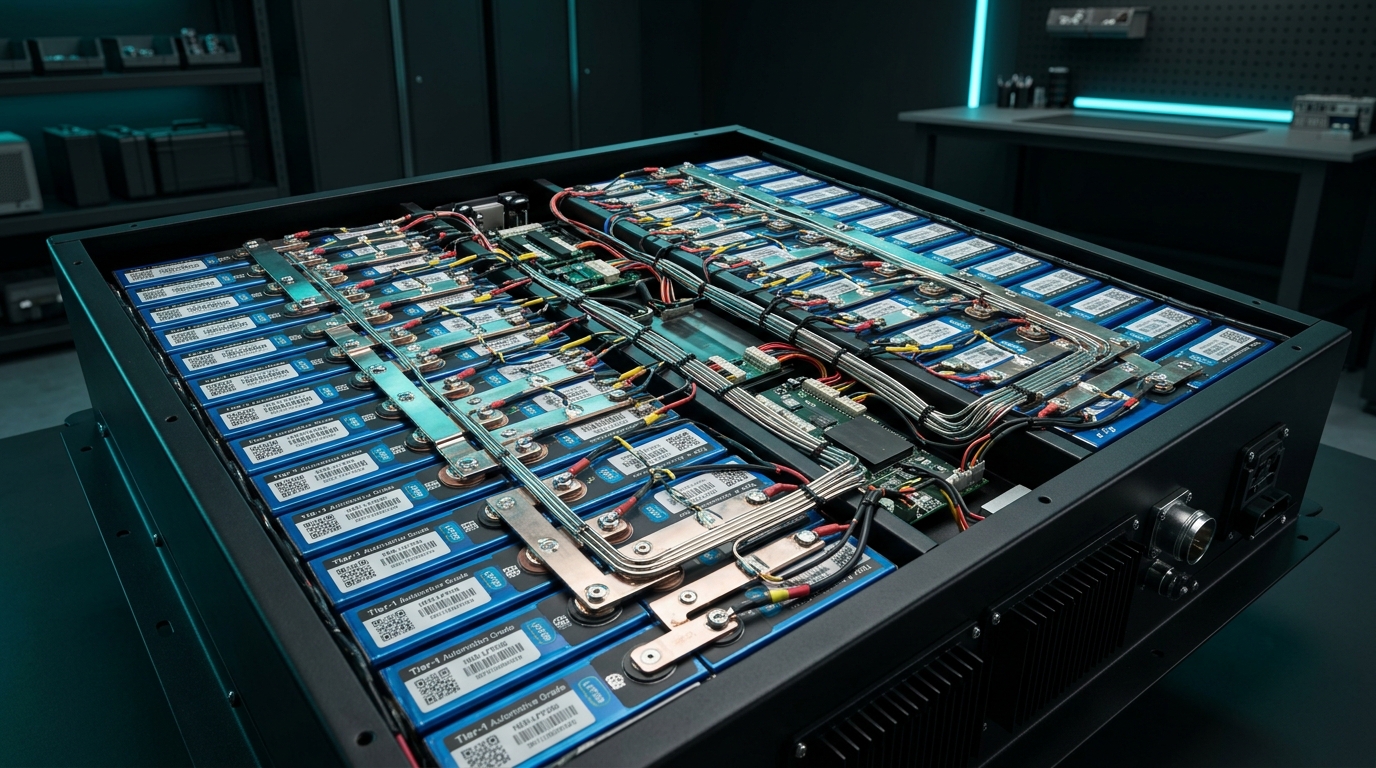

Giant 314Ah Prismatic LiFePO4 Cells (16,076 Wh)
Built with newest generation 314Ah high-energy density automotive prismatic cells. A single Neptune LA-C16.0 unit provides more usable energy than 12 heavy tubular lead-acid batteries, saving over 400kg in deadweight and completely eliminating room acid fumes.

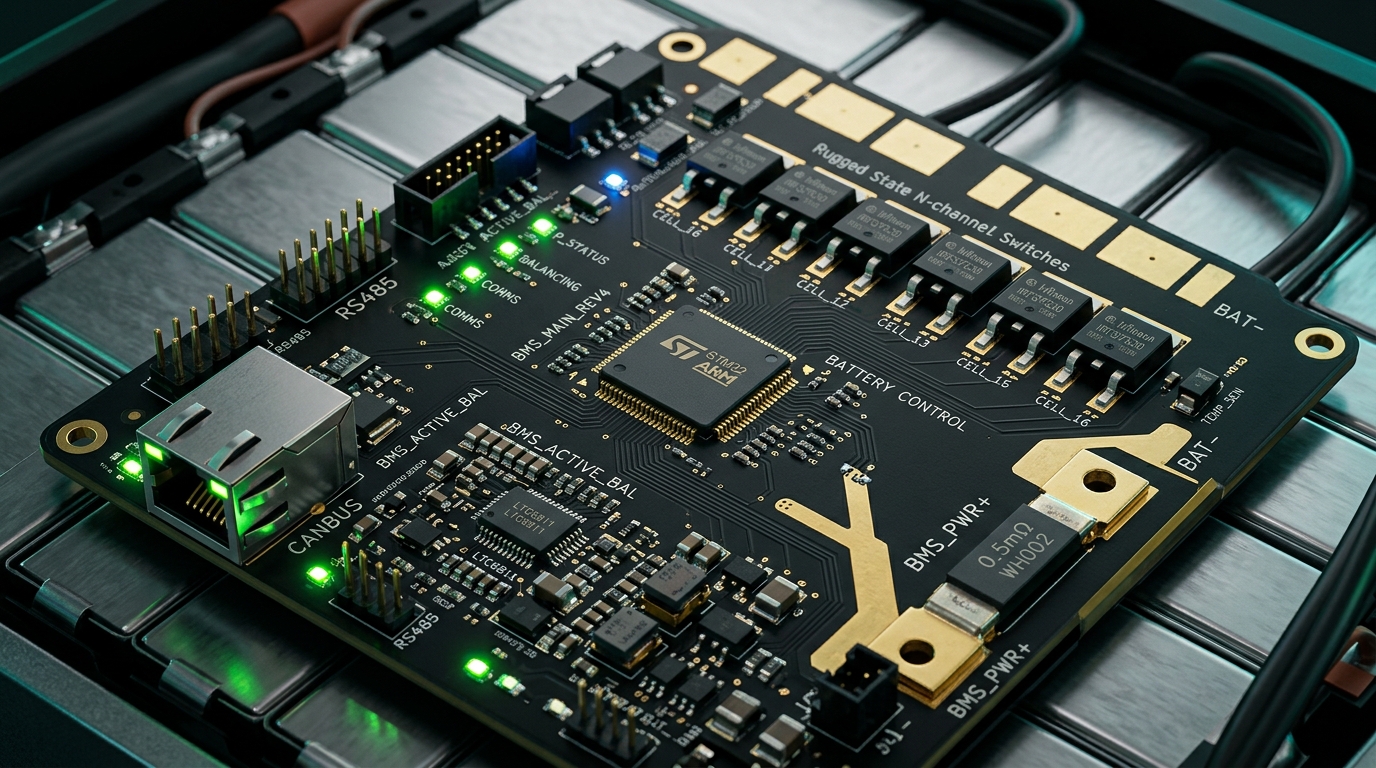

Industrial 200A Smart Dual-Bus BMS with Active Balancing
Equipped with an industrial high-current 200A continuous BMS controller with dual microprocessors. Monitors all 16 cell groups independently with sub-millivolt precision and balances charge transfer continuously while syncing with your solar hybrid inverters.
Dual RJ45 ports for inverter handshake & battery cascade.

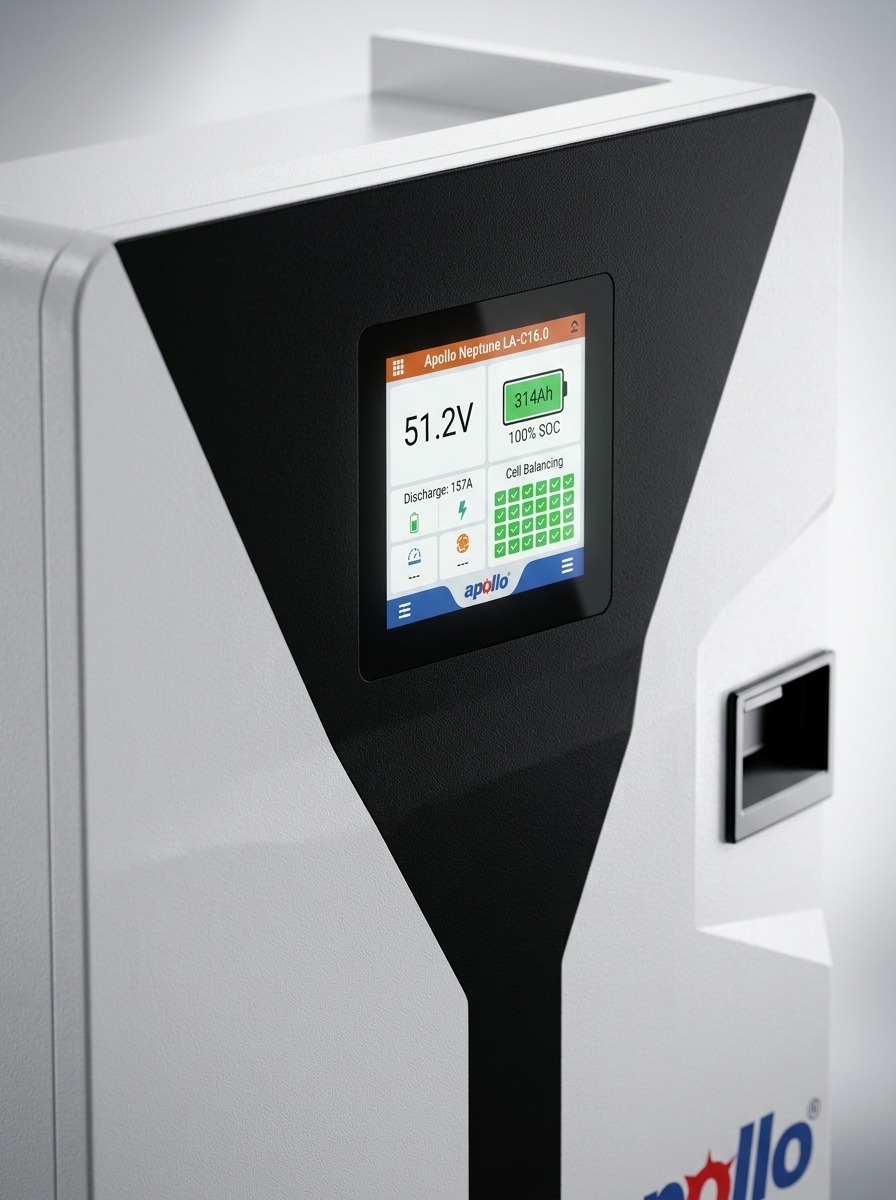

Interactive screen reveals individual cell millivolt telemetry.
Sustained 157A Continuous Discharge: Runs Multiple ACs All Night
With 157A continuous discharge and up to 200A surge withstand, the Neptune LA-C16.0 easily powers two to three 1.5 Ton Inverter ACs simultaneously along with refrigerators, deep freezers, LED lights, water pump cycles, and entertainment systems without breaking a sweat.

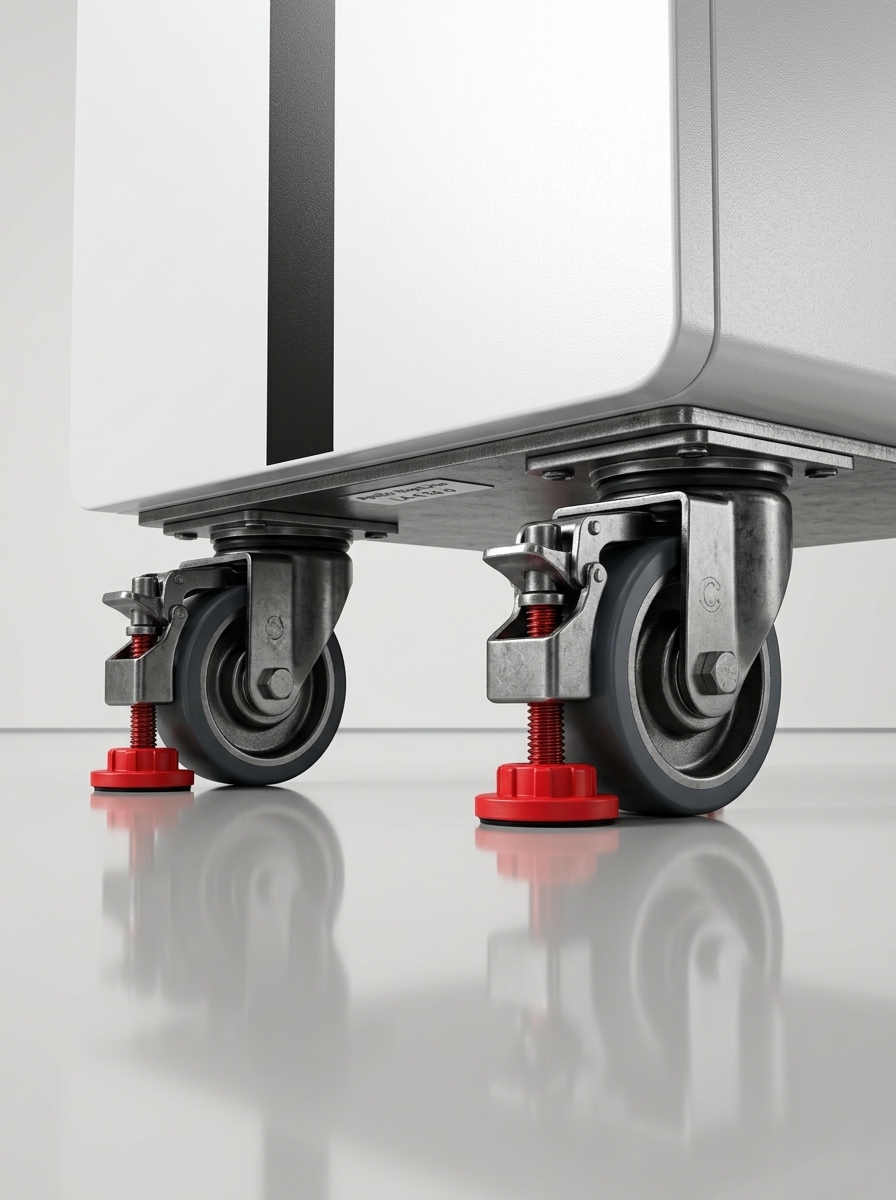

Floor-Standing Chassis with Heavy Casters & Dual Breakers

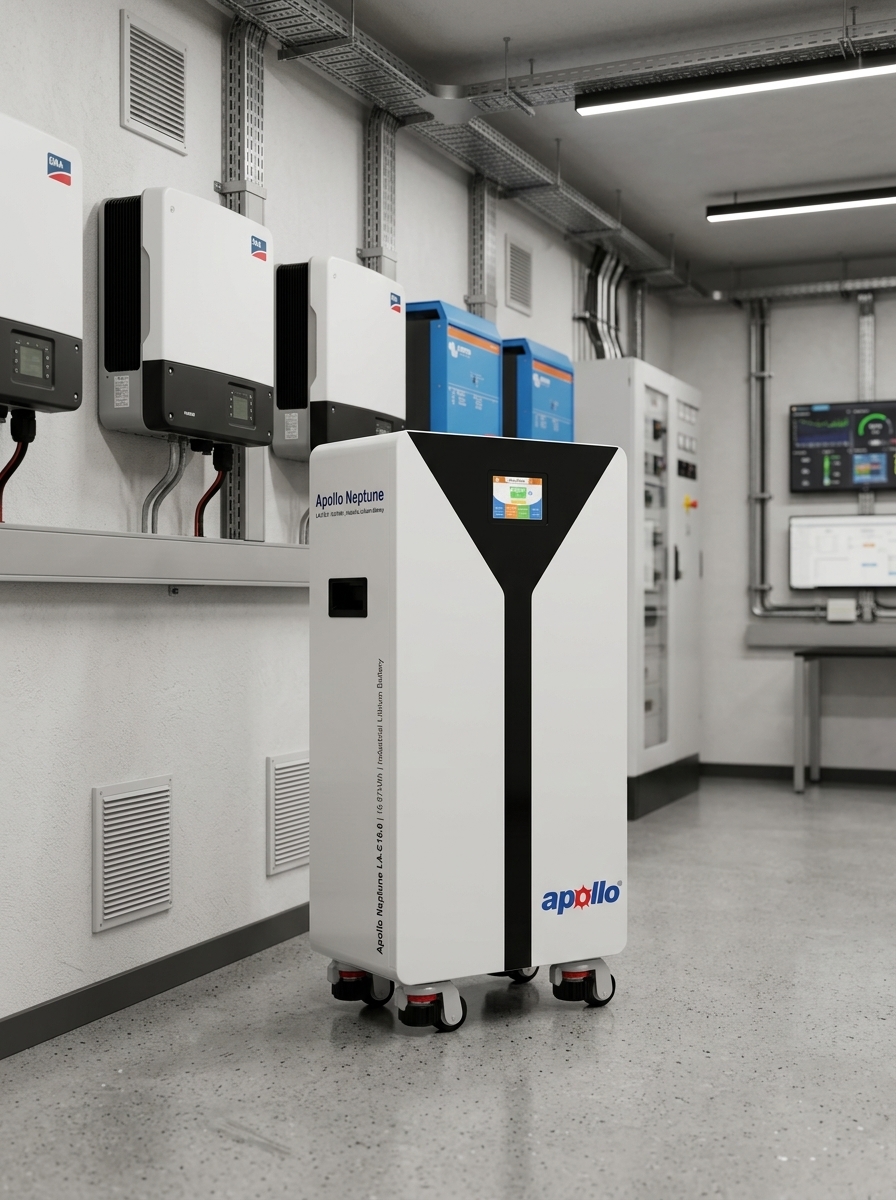

Weighing ~138kg with massive structural integrity, the Neptune LA-C16.0 features built-in industrial swivel casters with dual foot brakes for effortless placement, wall stabilizing brackets, and dual 200A DC circuit breakers for foolproof safety.
Neptune LA-C16.0 Multi-AC Nighttime Autonomy & Savings Simulator
Calculate how many hours of continuous cooling and power your home or facility will receive from 16.07kWh of lithium storage.
Deconstructed Precision Engineering
Observe the four-layer engineering: heavy industrial steel cabinet, 200A multi-protocol BMS controller, 314Ah prismatic cells, and heavy floor casters with dual 200A breakers.
Apollo Neptune Series Technical Matrix
Side-by-side engineering specifications verified against official Apollo Pakistan factory datasheets.
| Technical Parameter | Neptune LA-C5.1 (5.12kWh Wall) | Neptune LA-C16.0 (16.07kWh Floor) |
|---|---|---|
| ELECTRICAL PARAMETERS | ||
| Rated Storage Energy | 5.12 kWh (5,120 Wh) | 16.07 kWh (16,076 Wh) |
| Nominal System Voltage | 51.2 VDC | 51.2 VDC |
| Nominal Capacity | 100 Ah | 314 Ah |
| Operating Voltage Range | 44.8 VDC ~ 57.6 VDC | 44.8 VDC ~ 57.6 VDC |
| Max Continuous Discharge Current | 100 A (5,120 W) | 157 A Continuous / 200 A Peak (8kW–10kW) |
| Recommended Charge Current | 50 A | 100 A |
| CELL CHEMISTRY & CYCLE LIFE | ||
| Cell Chemistry | Automotive Grade-A LiFePO4 Prismatic | Automotive Grade-A LiFePO4 Prismatic (314Ah) |
| Cycle Durability (@ 80% DOD, 25°C) | ≥ 6,000 Deep Cycles | ≥ 6,000 Deep Cycles |
| Design Service Life | 15+ Years | 15+ Years |
| INTELLIGENCE & COMMUNICATION | ||
| Communication Protocols | CAN 2.0B / RS485 / RS232 | CAN 2.0B / RS485 / RS232 |
| Inverter Handshake Compatibility | Apollo, Deye, Voltronic, Growatt, GoodWe, Inverex | Apollo, Deye, Voltronic, Growatt, GoodWe, Inverex |
| Display Interface | Color Touch LCD Screen + LED SOC Ring | Color Touch LCD Screen + Breaker Panel |
| Parallel Expansion Capability | Yes, up to 15 Units (76.8 kWh) | Yes, up to 15 Units (241 kWh) |
| MECHANICAL & ENVIRONMENTAL | ||
| Installation Form Factor | Wall-Mounted (Bracket included) | Floor-Standing with Heavy Swivel Casters |
| Dimensions (W x D x H mm) | 480 x 175 x 650 mm | 520 x 420 x 930 mm |
| Net Weight | ~48 kg | ~138 kg |
| Operating Temperature | Charge: 0°C to +55°C · Discharge: -20°C to +55°C | Charge: 0°C to +55°C · Discharge: -20°C to +55°C |
| Enclosure Protection | IP54 Weather-Sealed | IP54 Weather-Sealed |
| Official Warranty | 5-Year Official Apollo Pakistan Warranty | 5-Year Official Apollo Pakistan Warranty |
Download Official Neptune LA-C16.0 Datasheet
Get complete technical specifications, CAN/RS485 pinout diagrams, multi-unit parallel cascade guides, and warranty terms. Or visit our Karachi showroom to experience Neptune in person.
