Apollo Sunprox Max Series: Stealth Direct Solar Hybrid Inverters
High-performance stealth edition hybrid inverters combining bold Apollo Red racing stripes, dynamic LED status illumination, dual MPPT trackers up to 13,000W PV, and pure sine wave direct drive capable of powering heavy Inverter ACs without batteries.
Stealth Hybrid Architecture in Motion

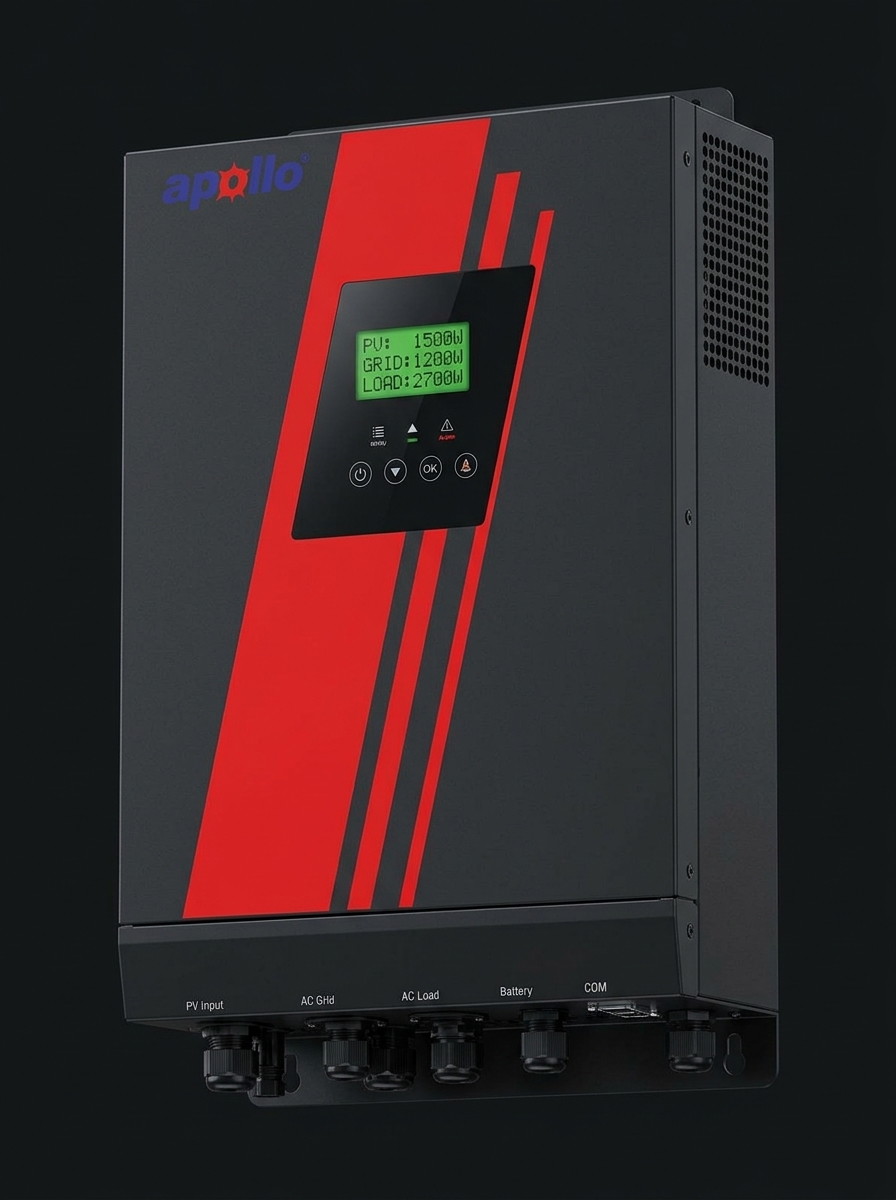

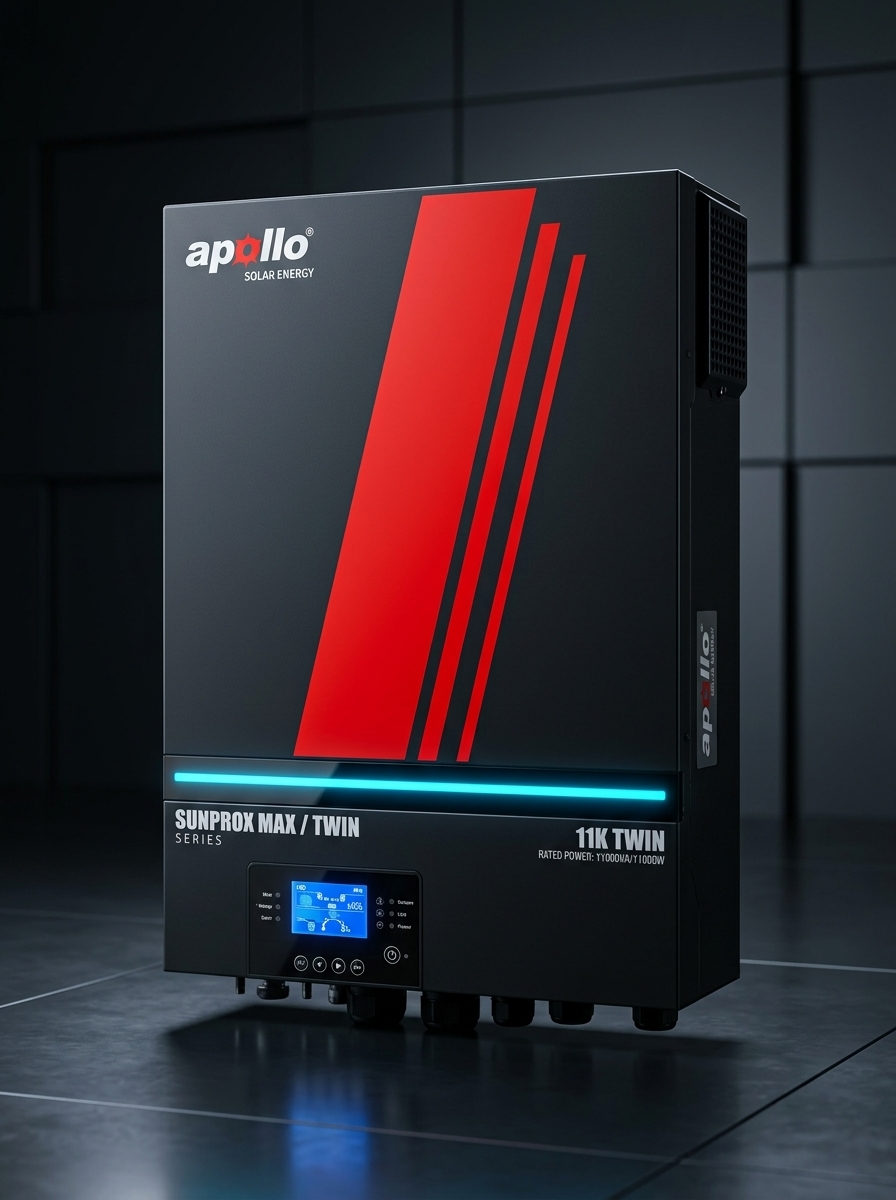

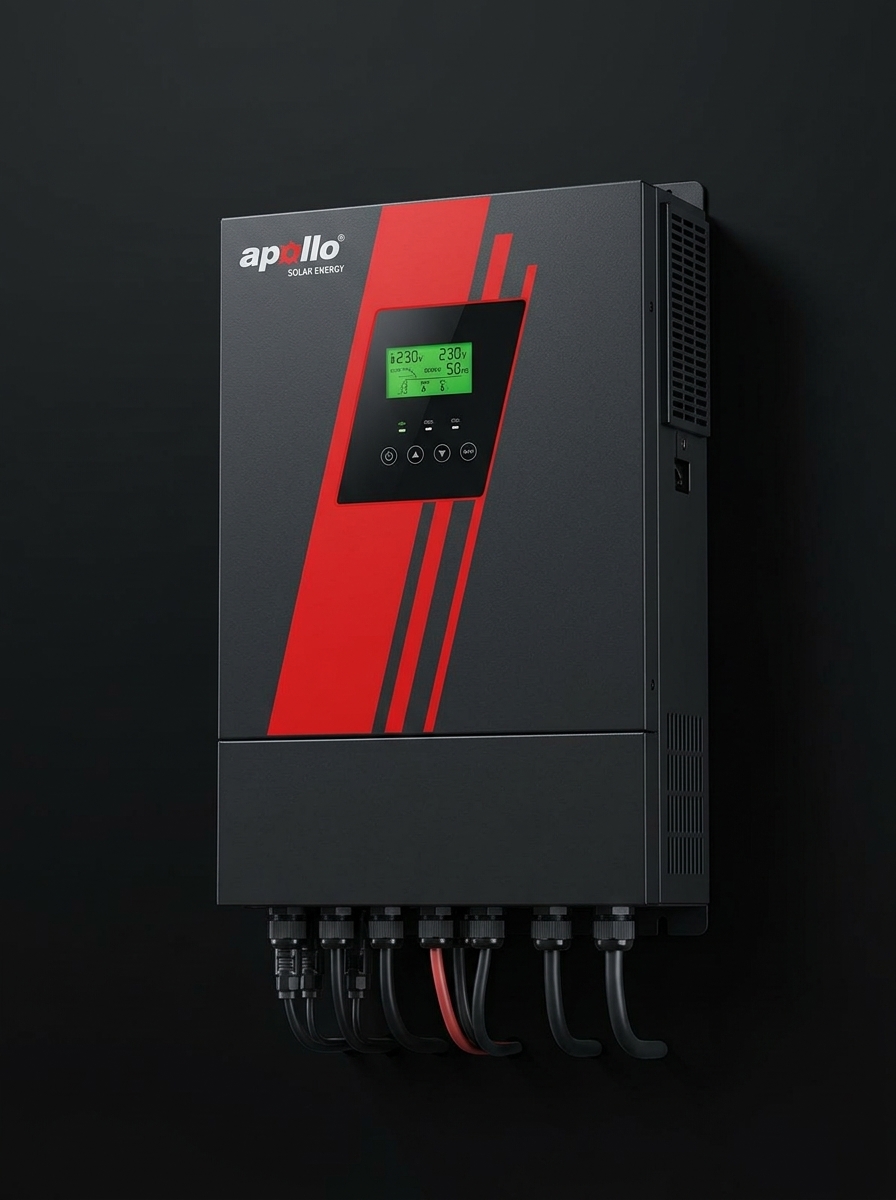

Explore the genuine Apollo Sunprox Max in full high-definition video. Switch between models below to inspect the 11K Twin with its dynamic ambient lightbar, the 6.2kW dual AC output model, and the 3.0kW compact direct solar edition.
Four Pillars of Stealth Solar Engineering
How Apollo Sunprox Max redefines high-yield residential and commercial solar in Pakistan: zero battery daytime running, intelligent dual circuit shedding, massive 200% surge resilience, and climate-hardened active safety.
Run Inverter AC & Refrigerator Without Any Battery
In traditional solar setups, running heavy inductive loads like air conditioners and refrigerators requires costly battery banks that cost Rs. 150,000 to 300,000 and degrade every 2–3 years. The Sunprox Max operates directly on daytime solar photovoltaic power via its high-voltage 30V~450V MPPT tracker.

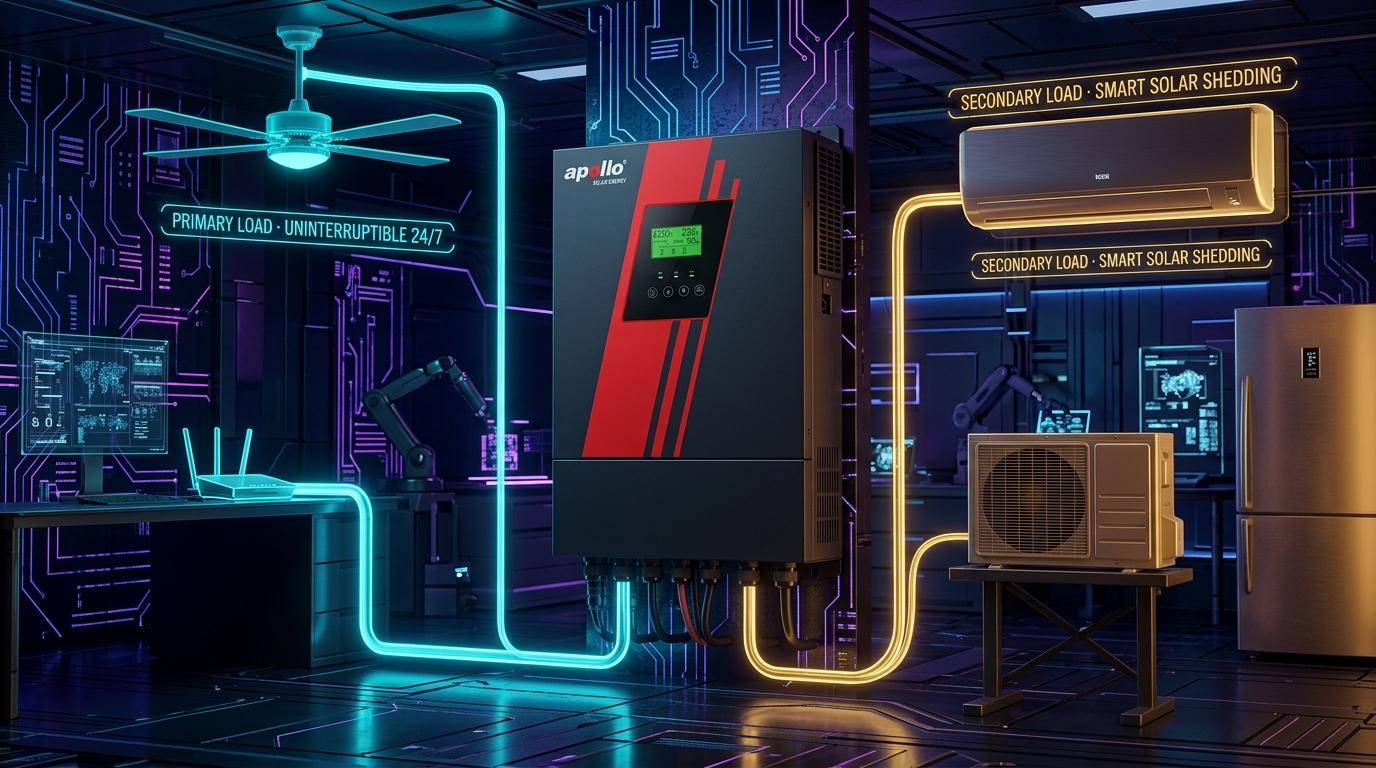

Smart Dual AC Output Circuit Separation
Equipped with independent internal electromagnetic relays dividing your property into two isolated electrical circuits. When passing cloud cover reduces solar yield or grid power drops, the inverter intelligently protects essential appliances while shedding non-critical heavy loads.
Dedicated to essential living areas: Ceiling Fans, LED Lighting, Wi-Fi router, CCTV cameras, and PC workstations. Guaranteed continuous uptime.
Dedicated to heavy inductive machines: 1.5 Ton Inverter AC, Deep Freezers, Water Pump. Dynamically modulated to match instantaneous solar wattage.
Supreme 200% Surge Withstand Capability
Compressor motors in Pakistani air conditioners and refrigerators draw massive locked-rotor inrush currents upon startup (up to 3x their rated wattage). Traditional inverters immediately trip into error codes. Apollo Sunprox Max features industrial-grade power electronics capable of sustaining massive surges.
Ruggedized Protection Against Pakistan Extremes
Engineered specifically for the electrical and environmental challenges of Pakistan: extreme summer heat exceeding 50°C in Sindh and Punjab, heavy ambient dust, and voltage spikes on the WAPDA/K-Electric national grid.
Daytime Solar Sizing & Bill Savings
Calculate your actual daytime solar coverage without batteries. Select your Sunprox Max model, adjust solar panel capacity, and toggle appliances to see your estimated monthly electricity bill savings in Pakistan.
Deconstructed Stealth Engineering
Observe the dual AC output relays, high-voltage dual MPPT controller, racing chassis armor, dynamic ambient lightbar, and pure copper wound inverter core.
Sunprox Max Series Technical Matrix
Complete engineering specifications verified against the official Apollo Pakistan factory datasheet.
| Technical Parameter | Model 3.0 (24V) | Model 4.2 (24V) | Model 6.2 (48V) | Model 11K TWIN (48V) |
|---|---|---|---|---|
| RATED POWER & OUTPUT CAPACITY | ||||
| Rated Output Power | 3000VA / 3000W | 4200VA / 4200W | 6200VA / 6200W | 11000VA / 11000W |
| Output Power (PV + Batt) | 3000W | 4200W | 6200W | 11000W |
| Output Power (Battery Only) | 2500W | 4000W | 5000W | 10000W |
| AC Output Configuration | Single Output | Dual AC Outputs | Dual AC Outputs | Dual AC Outputs |
| Surge Power Capacity | 6,000 VA | 8,400 VA | 12,400 VA | 22,000 VA |
| Efficiency (Peak) / Waveform | 93% · Pure Sine Wave | 93% · Pure Sine Wave | 93% · Pure Sine Wave | 93% · Pure Sine Wave |
| SOLAR CHARGER & PV INPUT (MPPT) | ||||
| Maximum PV Array Power | 4,500 W | 6,000 W | 7,500 W | 13,000 W (6500W x 2) |
| MPP Range @ Operating Voltage | 30 ~ 400 VDC | 60 ~ 450 VDC | 90 ~ 450 VDC | 90 ~ 450 VDC (Dual MPPT) |
| Battery-Free Min Startup Voltage | 60 VDC | 60 VDC | 100 VDC | 90 VDC |
| Max PV Array Open Circuit Voltage | 450 VDC | 500 VDC | 500 VDC | 500 VDC |
| Maximum PV Input Current | 13 A | 18 A | 18 A | 27 A x 2 (Max 40 A) |
| BATTERY & AC CHARGING | ||||
| Battery Nominal Voltage | 24 VDC | 24 VDC | 48 VDC | 48 VDC |
| Floating / Overcharge Voltage | 27 VDC / 32 VDC | 27 VDC / 32 VDC | 54 VDC / 63 VDC | 54 VDC / 63 VDC |
| Max Solar / AC Charge Current | 100 A / 80 A | 120 A / 100 A | 100 A / 100 A | 150 A / 150 A |
| PHYSICAL & SYSTEM SCALABILITY | ||||
| Dimensions (D x W x H mm) | 90 x 288 x 357 | 115 x 300 x 435 | 115 x 300 x 435 | 147.4 x 432.5 x 553.6 |
| Net Weight | 7.1 kg (Ultra-Compact) | 9.0 kg | 10.4 kg | 18.4 kg |
| Parallel Capability | No | No | No | YES, up to 6 Units (66kW) |
| Status Lighting Interface | LCD Screen | LCD Screen | LCD Screen | Dynamic Ambient RGB Lightbar |
| Communication Interface | RS232 / RS485(BMS) / WIFI | RS232 / RS485(BMS) / WIFI | USB / RS232 / RS485 / WIFI / Dry-Contact | USB / RS232 / RS485 / WIFI / Dry-Contact |
| Compliance Safety | CE Compatible | CE Compatible | CE Compatible | CE Certified |

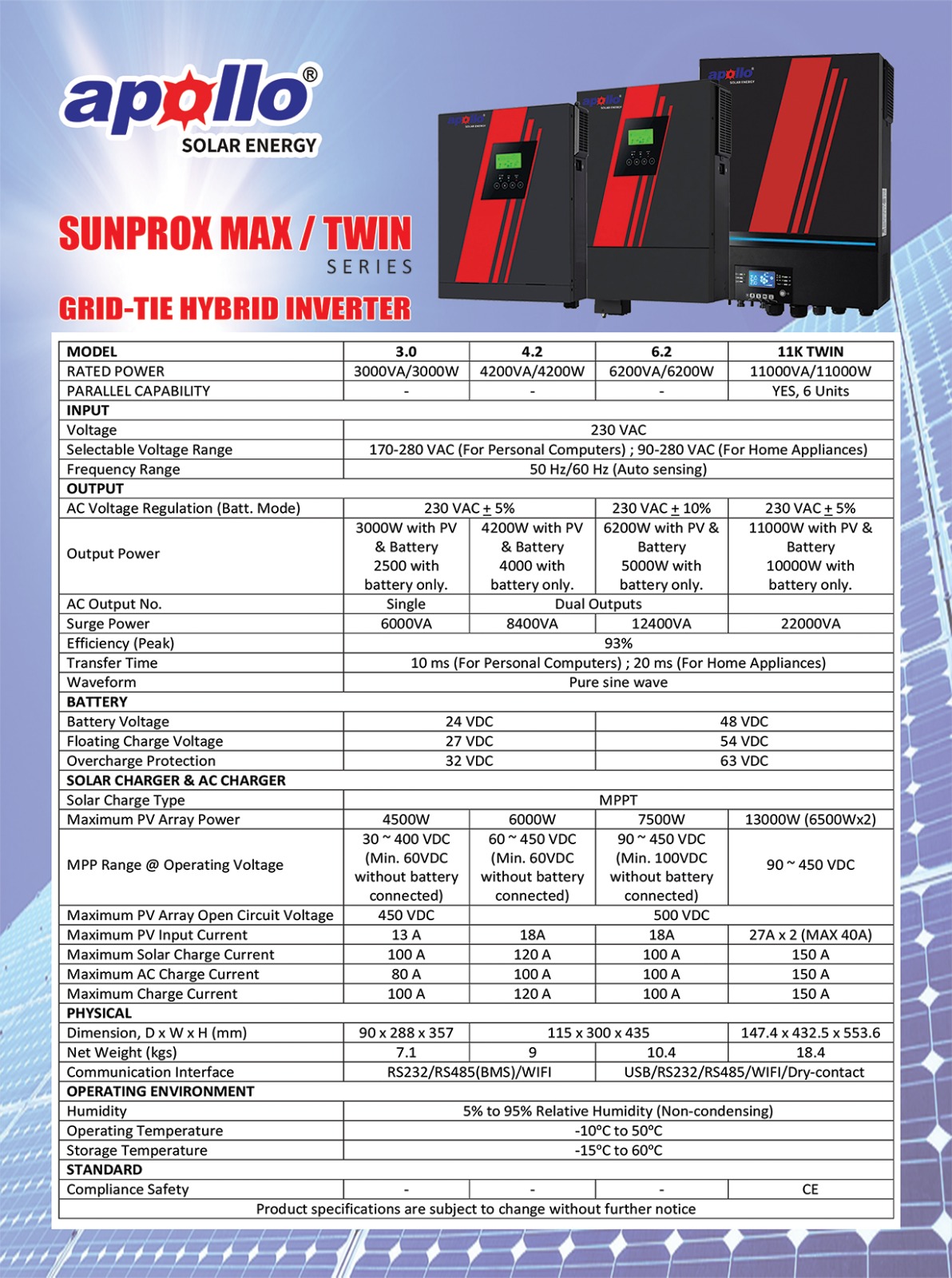

Download Official Sunprox Max Catalogue & User Manual
Get the original high-resolution brochure featuring direct solar running configurations, dual AC output wiring diagrams, and official factory warranty terms.
Visit Our Saddar Karachi Showroom
Inspect the Apollo Sunprox Max live on test benches. Speak directly with our certified solar engineers.
