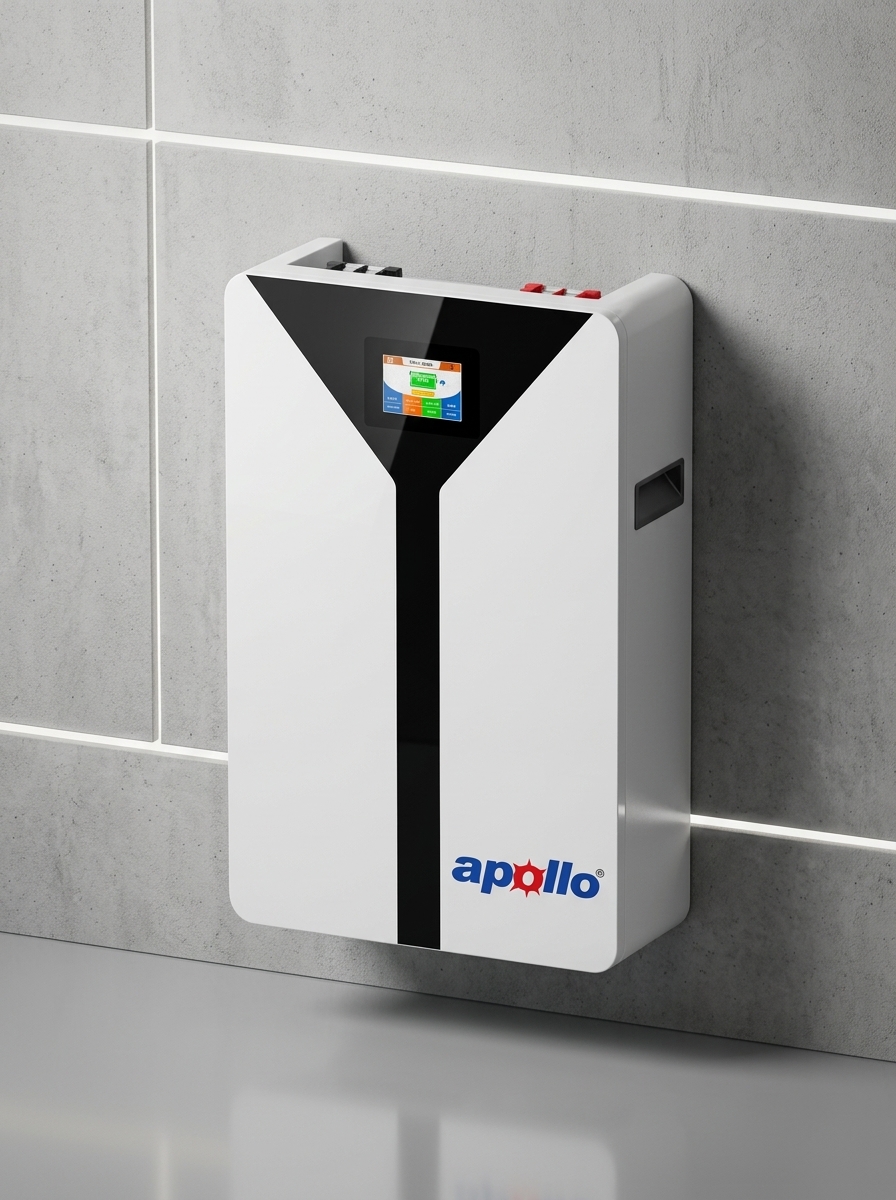

Apollo Neptune LA-C5.1: 5.12kWh LiFePO4 Energy Storage System
Engineered for Pakistan's power outages and severe summer cooling demands. The Apollo Neptune LA-C5.1 delivers true 5.12kWh automotive-grade lithium iron phosphate storage, seamless plug-and-play communication with Apollo, Deye, Voltronic, and Inverex inverters, and eliminates the toxic fumes, acid maintenance, and short lifespans of outdated tubular batteries.
Automotive-Grade LiFePO4 Chemistry & Precision BMS Architecture
Watch the deconstructed animation revealing the high-density prismatic cell matrix, active 1.5A balance circuitry, multi-protocol CANbus handshake, and multi-layer thermal barrier engineered for 55°C Pakistan ambient conditions.
Four Pillars of Lithium Energy Storage
How Apollo Neptune LA-C5.1 sets the standard for residential energy storage in Pakistan: automotive prismatic cell longevity, intelligent cloud-sync BMS, uninterrupted nighttime AC cooling, and multi-layer thermal defense.
Automotive Grade-A Prismatic Cells (6,000+ Cycles)
Built with Tier-1 automotive lithium iron phosphate (LiFePO4) prismatic cells featuring laser-welded solid nickel-plated busbars. Unlike traditional tubular lead-acid batteries that degrade within 18–24 months in Pakistani heat, Neptune provides over 15 years of uninterrupted daily deep-cycle service.
Intelligent Multi-Protocol Smart BMS with Auto-Handshake
The brain of the Neptune LA-C5.1 is an advanced 16S automotive microcontroller BMS with active 1.5A cell balancing. It establishes dual-bus CAN / RS485 communication protocols with leading solar inverters, ensuring precise real-time state-of-charge synchronization and fault prevention.
SOC, SOH, cell millivolts reported to inverter every 100ms.
Sub-millisecond over-current and over-temp hardware shutoff.
Heavy-Duty 100A Continuous Nighttime Inverter AC Discharge
Unlike weak lithium packs that throttle when an air conditioner compressor kicks in, the Neptune LA-C5.1 is engineered for 100A continuous discharge (5,120W output). Power your 1.5 Ton Inverter AC, refrigerator, deep freezer, and full home lighting through oppressive load-shedding nights with zero voltage dip.
Multi-Layer Thermal Protection & Hardware Circuit Breaker
Pakistan's summer ambient temperatures regularly surpass 45°C–50°C. Apollo Neptune LA-C5.1 is encased in heavy 2mm aviation cold-rolled steel with flame-retardant ceramic insulation, dual internal temperature probes, and an integrated heavy-duty DC isolator circuit breaker.
Neptune LA-C5.1 Nighttime Autonomy & Savings Simulator
Adjust your continuous nighttime load in Watts to calculate real backup hours and monthly electricity bill savings delivered by off-peak solar storage.
Deconstructed Precision Engineering
Observe the four-layer engineering: aviation cold-rolled steel fascia, 16S smart BMS microcontroller, laser-welded prismatic cells, and high-current terminal connections.
Apollo Neptune Series Technical Matrix
Side-by-side engineering specifications verified against official Apollo Pakistan factory datasheets.
| Technical Parameter | Neptune LA-C5.1 (5.12kWh Wall) | Neptune LA-C16.0 (16.07kWh Floor) |
|---|---|---|
| ELECTRICAL PARAMETERS | ||
| Rated Storage Energy | 5.12 kWh (5,120 Wh) | 16.07 kWh (16,076 Wh) |
| Nominal System Voltage | 51.2 VDC | 51.2 VDC |
| Nominal Capacity | 100 Ah | 314 Ah |
| Operating Voltage Range | 44.8 VDC ~ 57.6 VDC | 44.8 VDC ~ 57.6 VDC |
| Max Continuous Discharge Current | 100 A (5,120 W) | 157 A Continuous / 200 A Peak |
| Recommended Charge Current | 50 A | 100 A |
| CELL CHEMISTRY & CYCLE LIFE | ||
| Cell Chemistry | Automotive Grade-A LiFePO4 Prismatic | Automotive Grade-A LiFePO4 Prismatic |
| Cycle Durability (@ 80% DOD, 25°C) | ≥ 6,000 Deep Cycles | ≥ 6,000 Deep Cycles |
| Design Service Life | 15+ Years | 15+ Years |
| INTELLIGENCE & COMMUNICATION | ||
| Communication Protocols | CAN 2.0B / RS485 / RS232 | CAN 2.0B / RS485 / RS232 |
| Inverter Handshake Compatibility | Apollo, Deye, Voltronic, Growatt, GoodWe, Inverex | Apollo, Deye, Voltronic, Growatt, GoodWe, Inverex |

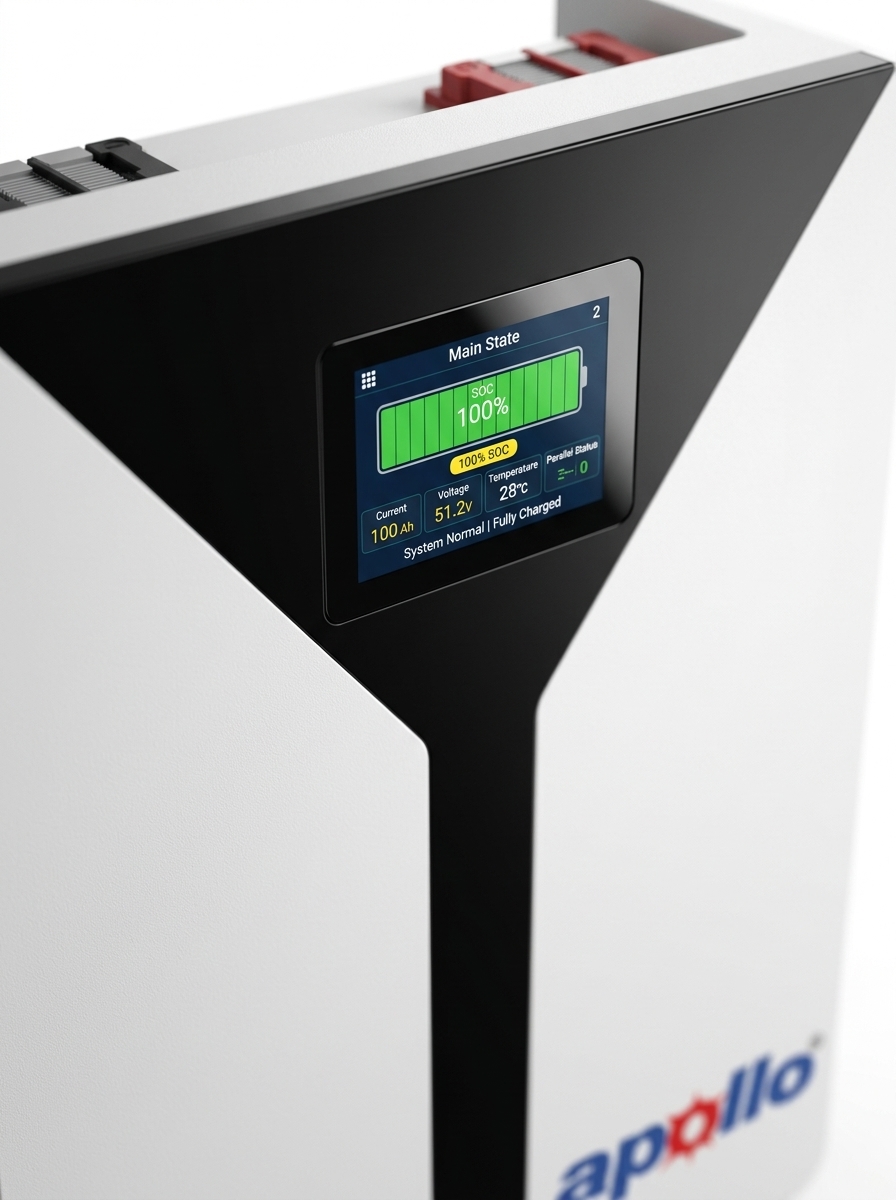

| Display Interface | Color Touch LCD Screen + LED SOC Ring | Color Touch LCD Screen + Breaker Panel |
| Parallel Expansion Capability | Yes, up to 15 Units (76.8 kWh) | Yes, up to 15 Units (241 kWh) |
| MECHANICAL & ENVIRONMENTAL | ||

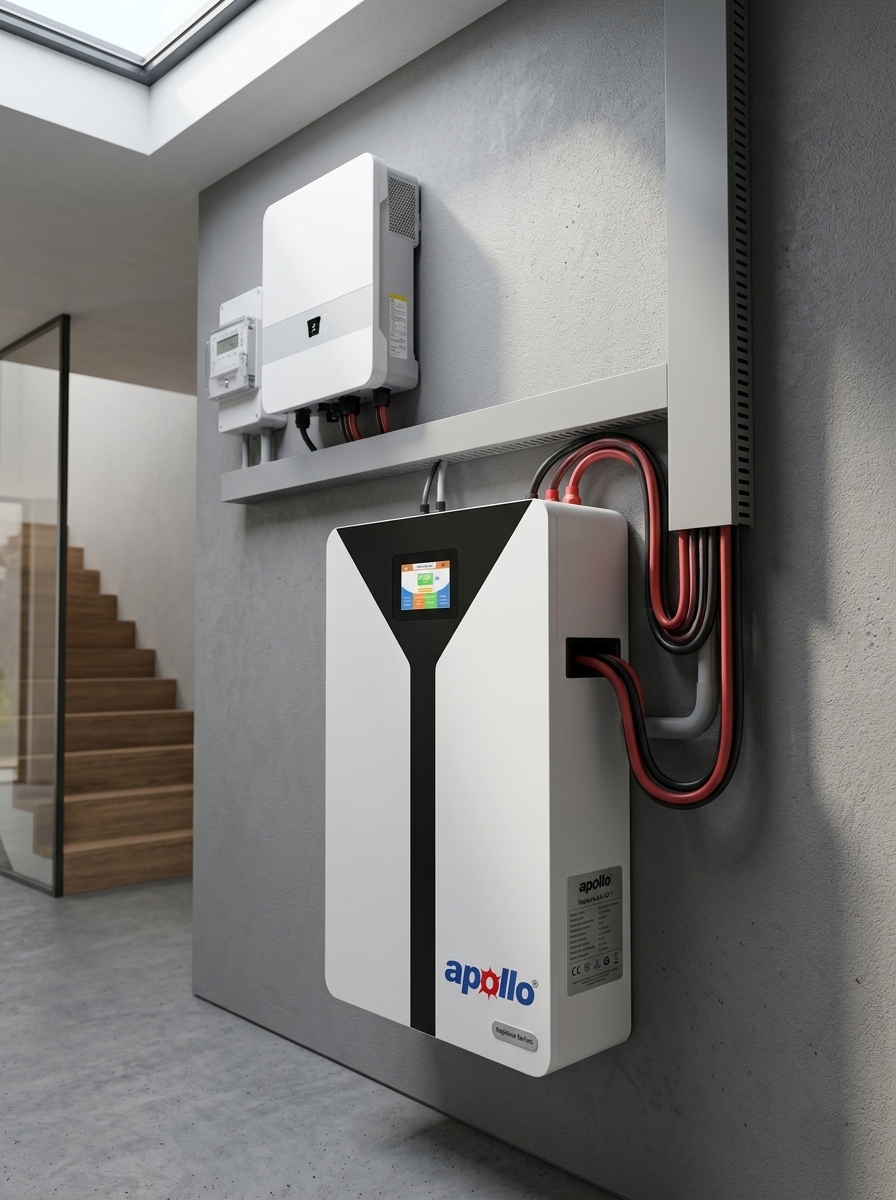

| Installation Form Factor | Wall-Mounted (Heavy-duty bracket included) | Floor-Standing with Industrial Heavy Casters |
| Dimensions (W x D x H mm) | 480 x 175 x 650 mm | 520 x 420 x 930 mm |
| Net Weight | ~48 kg | ~138 kg |
| Operating Temperature | Charge: 0°C to +55°C · Discharge: -20°C to +55°C | Charge: 0°C to +55°C · Discharge: -20°C to +55°C |
| Enclosure Protection | IP54 Weather-Sealed | IP54 Weather-Sealed |
| Official Warranty | 5-Year Official Apollo Pakistan Warranty | 5-Year Official Apollo Pakistan Warranty |

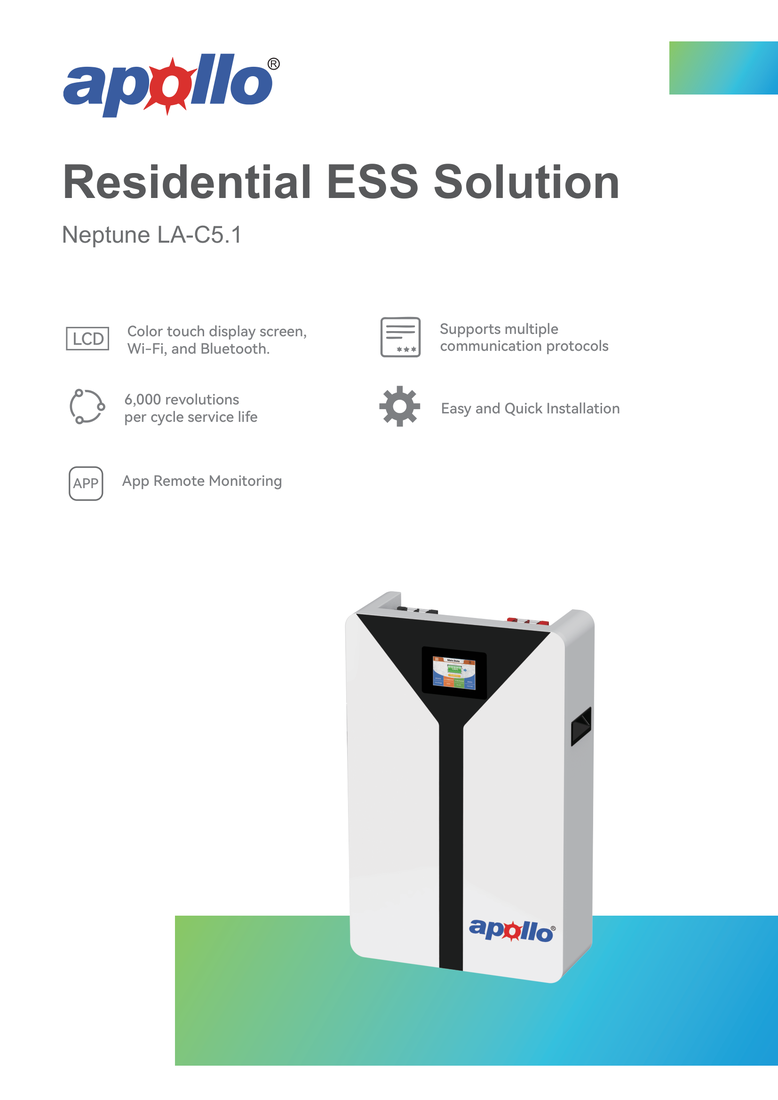

Download Official Neptune LA-C5.1 Datasheet
Get complete technical specifications, CAN/RS485 pinout diagrams, inverter configuration guides, and warranty terms. Or visit our Karachi flagship showroom to experience Neptune in person.
