Apollo Infini V4 Twin Series: Industrial Grid-Tie Hybrid Inverters
High-efficiency grid-tie hybrid inverters engineered with dual AC output (Twin), circular capacitive color touch screen with dynamic RGB halo status illumination, bi-directional net-metering export, and advanced parallel capability up to 9 units.
Grid-Tie Hybrid Architecture in Motion

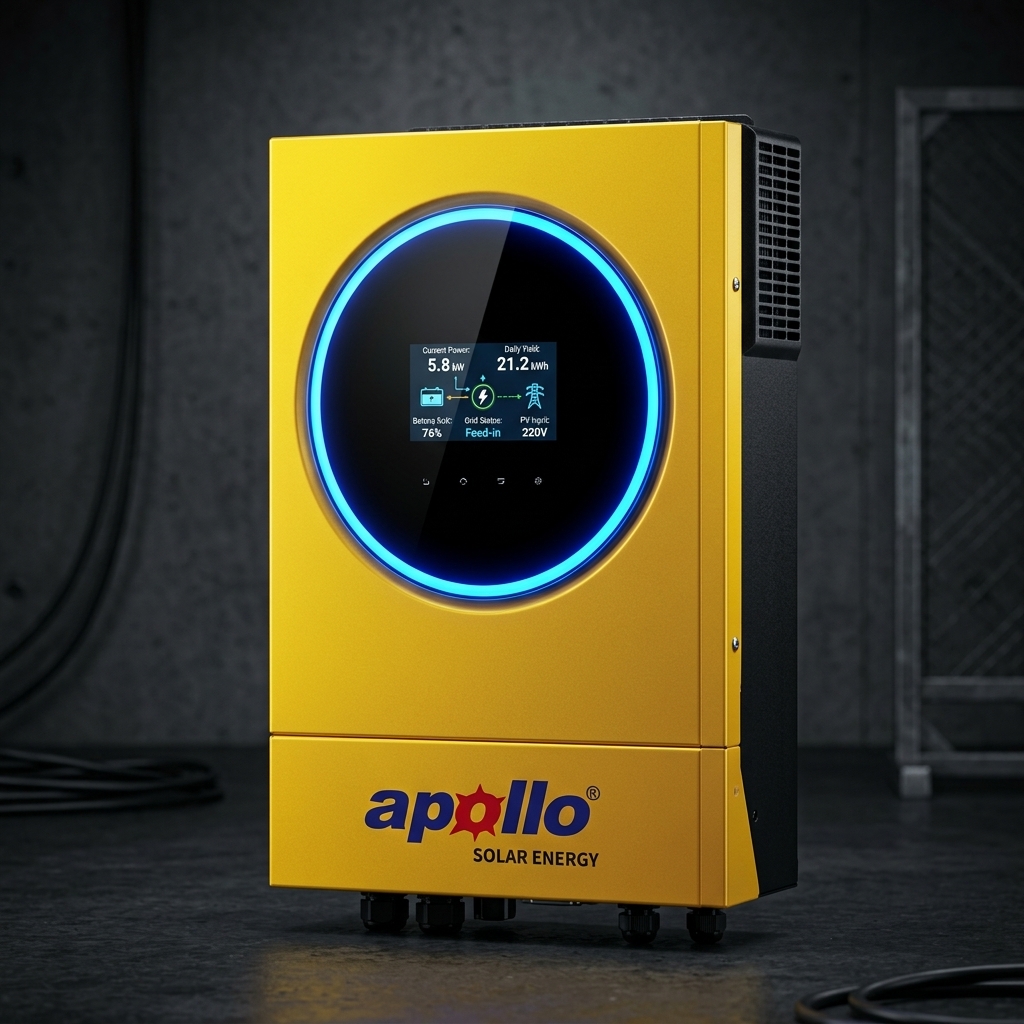

Experience the genuine Apollo Infini V4 Twin Series in full high-definition video. Inspect the iconic yellow chassis, glowing blue circular halo touchscreen, and industrial dual AC output terminal block.
Four Pillars of Infini V4 Grid-Tie Engineering
How Apollo Infini V4 Twin powers Pakistan's most demanding residential villas and commercial facilities: bi-directional net-metering export, dynamic halo touch telemetry, intelligent dual circuit separation, and industrial multi-unit scalability.

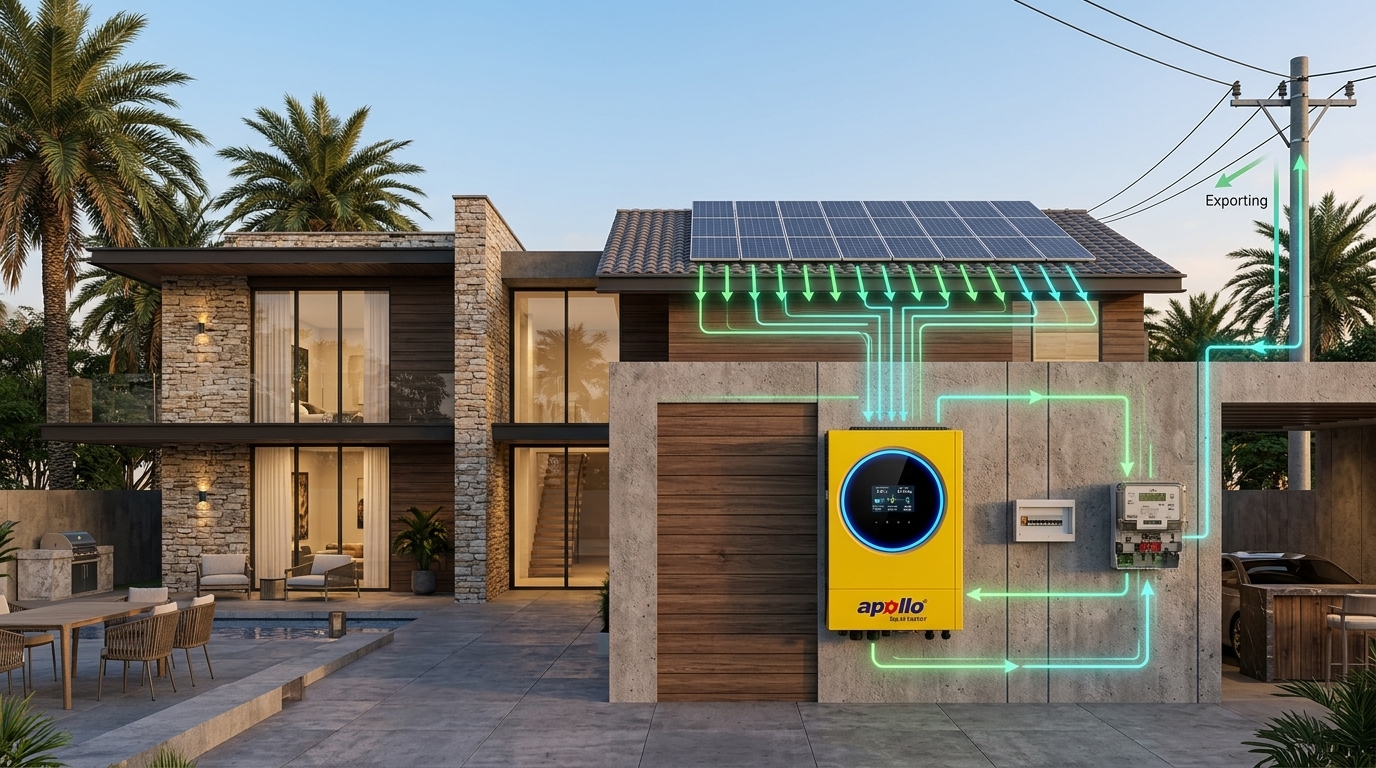

Spin Your Electricity Meter Backward & Zero Out Utility Bills
Unlike off-grid inverters that waste surplus daytime solar power once batteries are full, the Infini V4 Twin features an active bi-directional inverter bridge. Excess generated power is fed directly into the national grid (K-Electric, LESCO, IESCO, FESCO) via three-phase or single-phase net-metering.

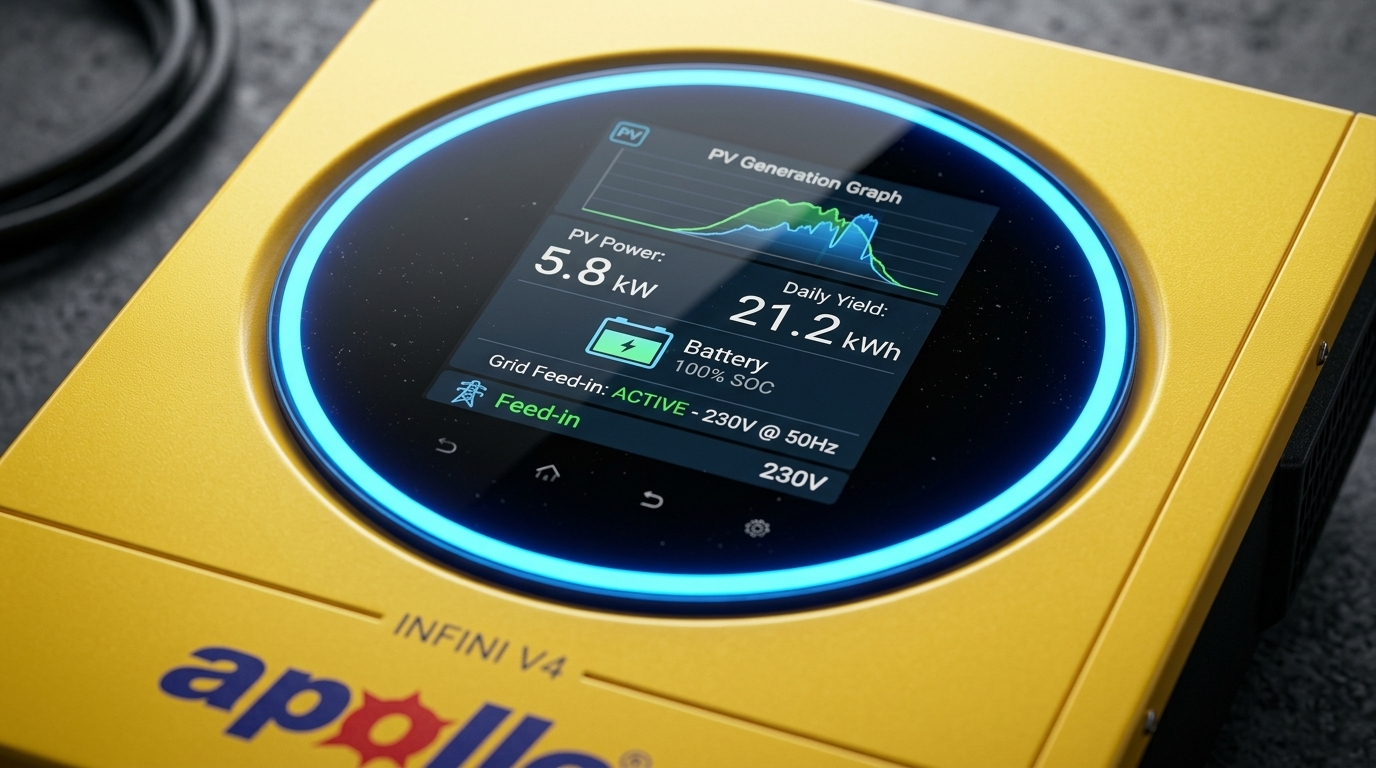

Circular Halo Touchscreen with Dynamic RGB Status Horizon
Command your entire solar installation effortlessly. The center console of the Infini V4 features a responsive capacitive color touchscreen surrounded by a 360-degree dynamic RGB Halo light ring that instantly broadcasts system state from across the room.

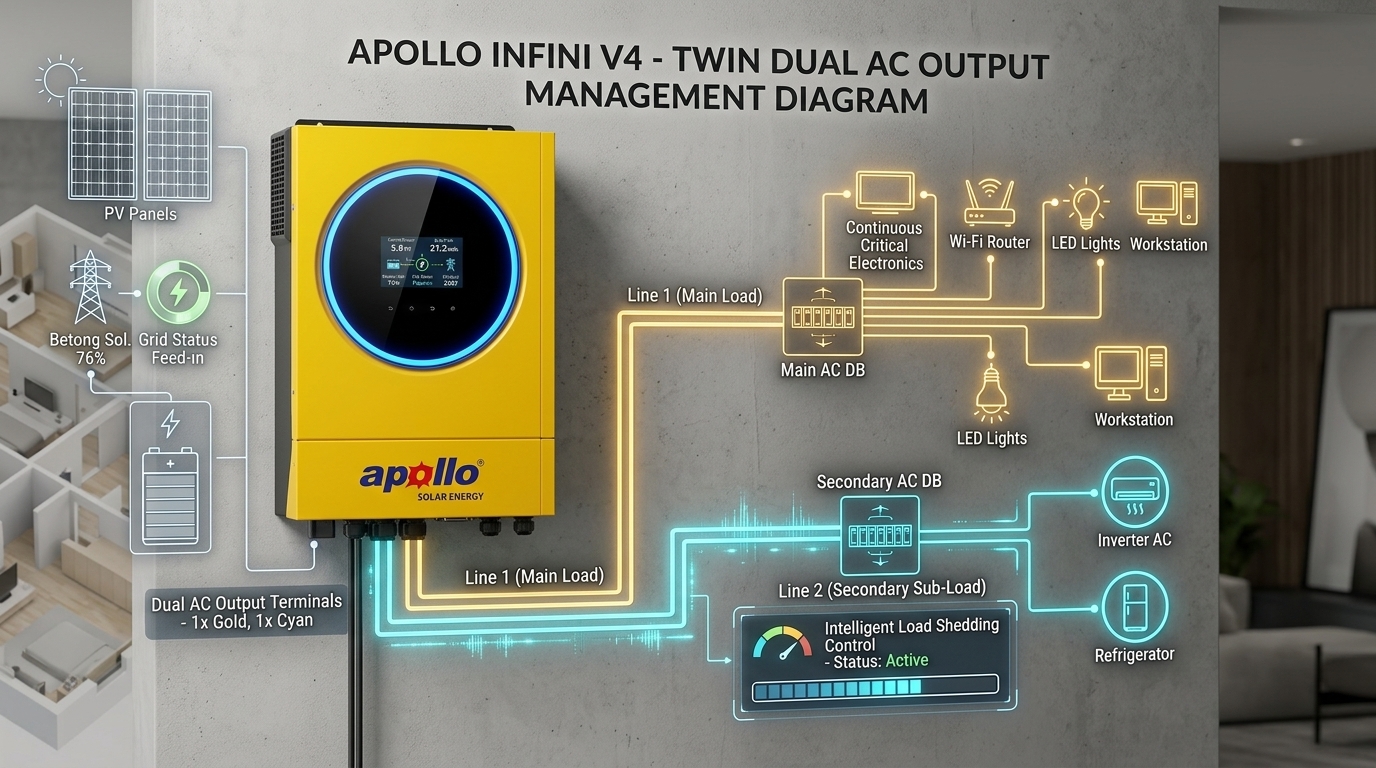

Smart Circuit Division Keeps Critical Loads Powered 24/7
Say goodbye to sudden blackouts caused by an air conditioner overloading the inverter. The Infini V4 Twin features physical Dual AC Output terminals that cleanly isolate heavy inductive appliances from critical home circuits.

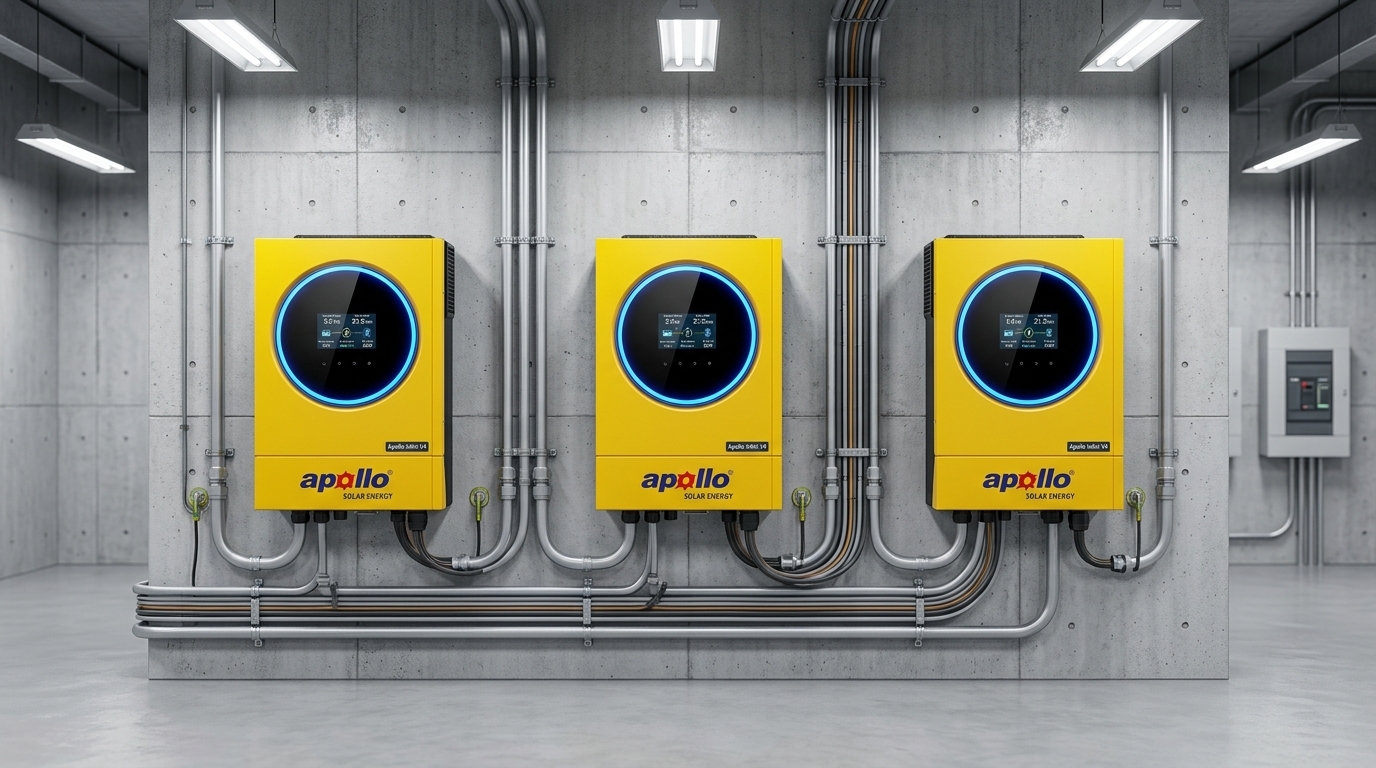

Up to 12,000W Solar Input & 9 Units in Parallel (54kW / 66kW)
Built to handle today’s high-current bifacial solar modules and scalable for expanding power demands. The Infini V4 supports up to 500VDC open circuit voltage, 27A maximum input current per MPPT tracker, and effortless parallel synchronization.
Simulate Your Solar Generation & Net-Metering Savings
Adjust the solar PV slider below (configured for Tier-1 585W bifacial solar panels) to estimate your daily generation yield, simultaneous daytime AC capability, and net-metering utility savings in Pakistan.
Deconstructed Precision Engineering
Drag the depth slider to pull apart the Infini V4 Twin chassis in 3D perspective space, revealing the circular halo display, high-voltage MPPT brain, and copper magnetic core.
Infini V4 Twin Technical Matrix
Complete engineering specifications verified against the official Apollo Pakistan factory datasheet.
| Technical Parameter | Model 4 (4kW 24V) | Model 6 (6kW 48V) | Model 11 (11kW Dual MPPT) |
|---|---|---|---|
| RATED POWER & PHASE | |||
| Rated Output Power | 4000VA / 4000W | 6000VA / 6000W | 11000VA / 11000W |
| Electrical Phase | 1-Phase in / 1-Phase out (220 / 230 / 240 VAC) | ||
| GRID-TIE OPERATION PV INPUT (DC) | |||
| Nominal / Max DC Voltage | 360 VDC ~ 500 VDC | ||
| Start-up / Initial Feeding Voltage | 120 VDC ~ 150 VDC | ||
| MPP Voltage Range | 120 VDC ~ 430 VDC | 120 VDC ~ 430 VDC | 90 ~ 450 VDC |
| No. of MPP Trackers / Max Input Current | 1 / 27 A | 1 / 27 A | 2 / 27A x 2 (Max 40A) |
| GRID OUTPUT (AC) & NET METERING | |||
| Nominal Output Voltage | 220 / 230 / 240 VAC | ||
| Output Voltage Range | 184 ~ 264.5 VAC or 195.5 ~ 253 VAC (Selectable) | ||
| Maximum Conversion Efficiency (DC/AC) | 96.0% | ||
| OFF-GRID OPERATION & BATTERY | |||
| Maximum PV Array Power | 5,000 W | 7,000 W | 12,000 W (6,000W x 2) |
| Battery Nominal DC Voltage | 24 VDC | 48 VDC | 48 VDC |
| Max Solar / AC Charging Current | 100 A | 150 A | 150 A |
| PHYSICAL & INTERFACE | |||
| Dimensions (D x W x H mm) | 140 x 295 x 468 | 140 x 295 x 468 | 147.4 x 432.5 x 553.6 |
| Net Weight | 10.0 kg | 12.0 kg | 18.4 kg |
| Parallel Capability | No | Yes, up to 9 Units (54kW) | Yes, up to 6 Units (66kW) |
| Communication Ports | USB / RS232 / RS485 / Wi-Fi / Dry-contact | ||
Frequently Asked Questions
Common questions regarding Apollo Infini V4 installation, net-metering licenses, and parallel system configuration.
Can the Apollo Infini V4 export power to K-Electric or WAPDA net-metering?
Yes! The Apollo Infini V4 Twin is a genuine grid-tie hybrid inverter certified for Net-Metering in Pakistan. It is fully compliant with NEPRA regulations and features anti-islanding protection. Surplus power generated during the day spins the green bidirectional meter backward, offsetting your electricity bill.
Can I use the Infini V4 if my Net-Metering application is still pending?
Absolutely. The Infini V4 features a built-in programmable Zero-Export limiter. You can activate this setting via the circular touchscreen, allowing the system to power your house and charge batteries from solar without feeding electricity back into the grid until your bidirectional net-meter is officially installed.
How does the Twin Dual AC Output work during load shedding?
The Infini V4 provides two separate AC outputs. Line 1 (Main Load) connects your essential appliances (lights, fans, computers, Wi-Fi, refrigeration), while Line 2 (Secondary Sub-Load) connects heavy appliances like air conditioners. When the grid fails and battery drops below your chosen threshold, the inverter cuts off Line 2 to conserve energy, ensuring your essential lights and fans stay on throughout the night.
Is the Infini V4 compatible with Apollo Neptune Lithium Batteries?
Yes. The 6kW and 11kW models feature 48V battery architecture with direct CAN/RS485 communication protocols for Apollo Neptune LA-C5.1 (5.12kWh) and LA-C16.0 (16.07kWh) LiFePO4 batteries, allowing real-time smart BMS handshake, accurate SOC telemetry, and rapid 150A charging.
Download Official Infini V4 Twin Catalogue
Get the original high-resolution brochure featuring complete wiring diagrams, parallel connection schematics, net-metering wiring, and technical warranty terms.
